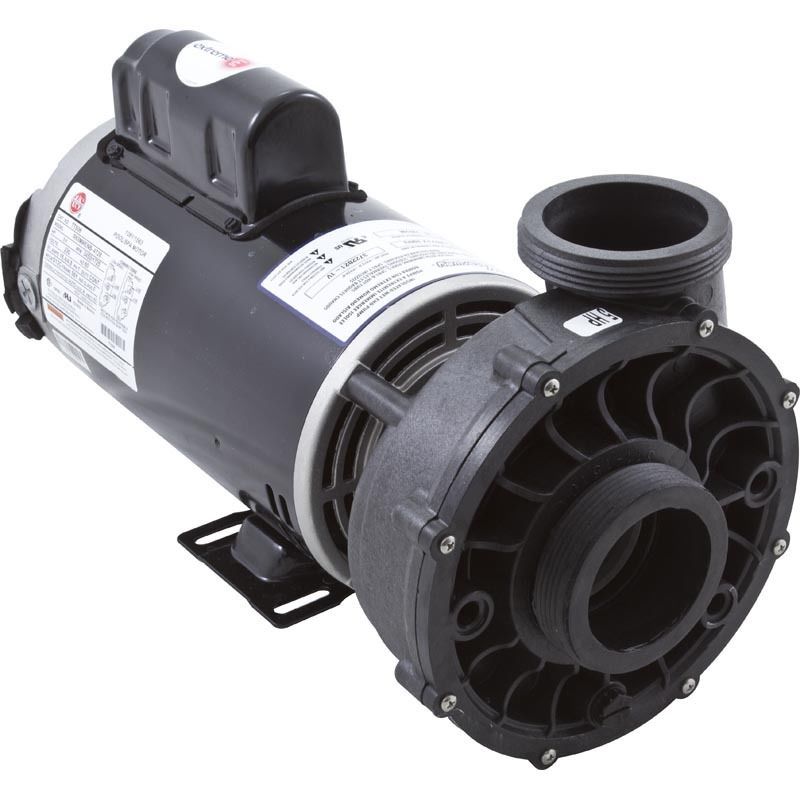

Waterway 3722021-1V 2.5" x 2.5" 230V 5.0HP Viper Pump
Features:- Viper wet end designed specifically for 56-frame motors
- Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life
- Two speed motors have four sets of insulated windings for increased efficiency
- 56-frame motor for added strength, cooler operating temperature, and longer motor life
- Large 2-1/2" intake for improved flow performance and reduced noise
- Large 8" diameter wet end for increased volume capacity
- Split capacitor, (start and run) for less energy consumption
- Thermally protected to extend life expectancy of motor
- Highly versatile wet end can be rotated every 90 degrees
- Dimensions (H x W x L): 9.08" x 8.05" x 15.72"
- Complete Pump Type: Portable Spa Pump
- Speed: 2 Speed (2-Spd)
- Motor Voltage: 230v
- Drain Plug Location: 3,4,6,9 o`clock
- Pump to Motor Foot Types: 1
- Suction Style: Center
- Suction Connection (Physical Dimension): 3-11/16" od
- Suction Connection Type: Male Buttress Thread (mbt)
- Suction Pipe Size: 2-1/2"
- Discharge Style: Side
- Discharge Connection (Physical Dimension): 3-11/16" od
- Discharge Connection Type: Male Buttress Thread (mbt)
- Discharge Pipe Size: 2-1/2"
- Horsepower: 5.0hp
- Motor Frame: 56 Frame Thru-Bolt
- Motor Amperage/Wattage: 16.4A/4.8A
- Pump Volute Fastening Type: 8 Screws
- Volute/Sealplate Number: 315-1500
