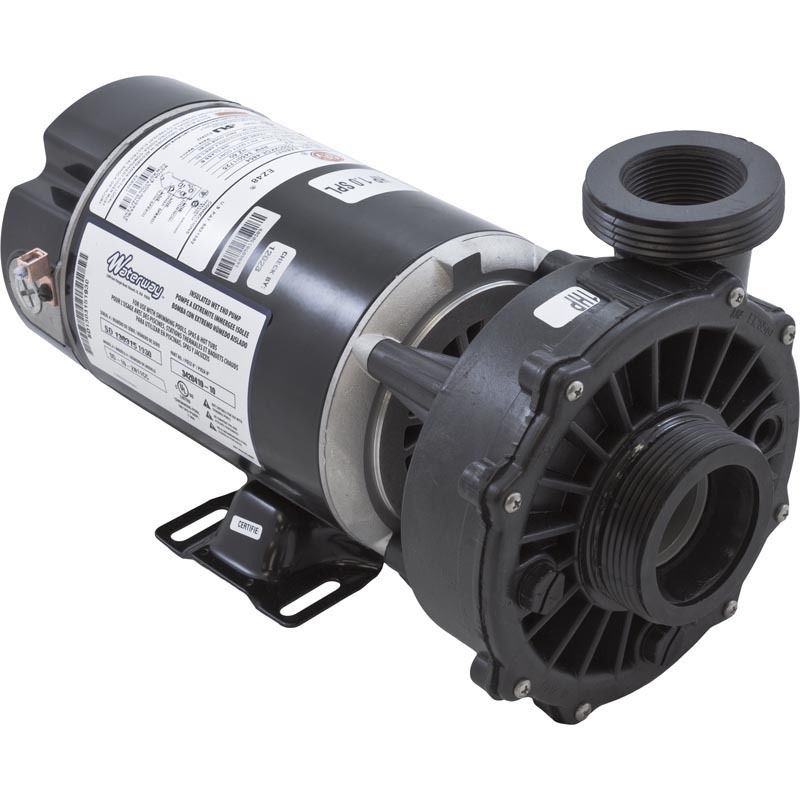

Waterway 3420410-10 2" 230V 1.0HP Hi-Flo Pump
Features:- High volume side discharge efficiency
- 60% more efficient than our center discharge pumps
- 2" intake and discharge
- Wet end can be rotated for easy installation
- Large 6-1/2" diameter wet end for higher head pressure
- Dimensions (H x W x L): 7.5" x 7.375" x 14.23"
- Complete Pump Type: Portable Spa Pump
- Speed: 2 Speed (2-Spd)
- Motor Voltage: 115v
- Drain Plug Location: 3,6,9 o`clock
- Pump to Motor Foot Types: 17
- Suction Style: Center
- Suction Connection (Physical Dimension): 3-1/16" od
- Suction Connection Type: Male Buttress Thread (mbt)
- Suction Pipe Size: 2"
- Discharge Style: Side
- Discharge Connection (Physical Dimension): 3-1/16" od
- Discharge Connection Type: Male Buttress Thread (mbt)
- Discharge Pipe Size: 2"
- Horsepower: 1.0hp
- Motor Frame: 48 Frame Thru-Bolt
- Motor Amperage/Wattage: 11.0A/2.9A
- Pump Volute Fastening Type: 8 Screws
- Volute/Sealplate Number: 315-2500
