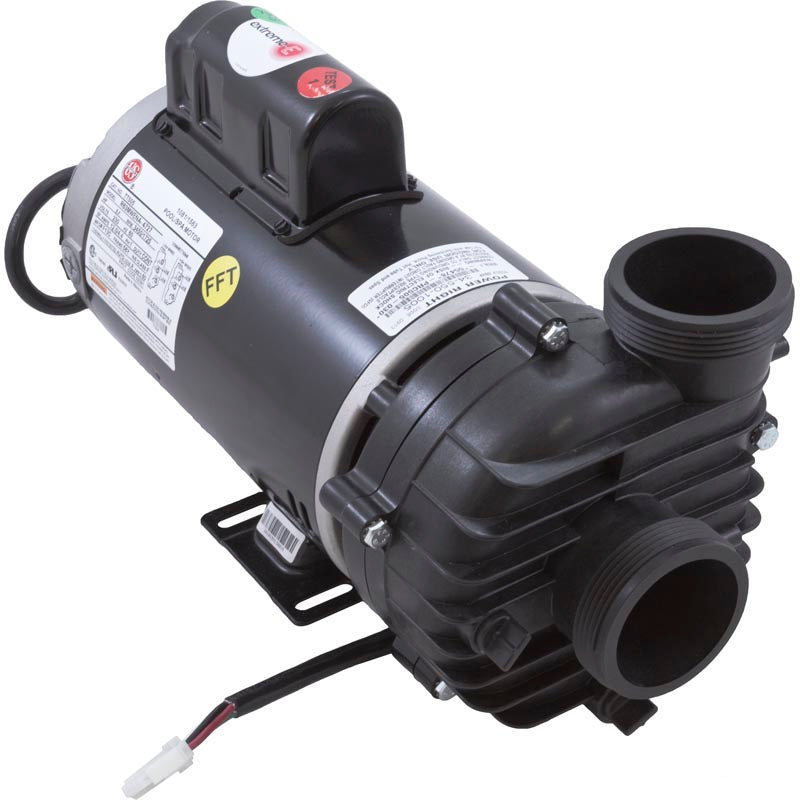

Power PRC505 2" 3.0HP 6.0 SPL 2-Speed 56 Frame Pump
Specifications:- Complete Pump Type: Portable Spa Pump
- Speed: 2 Speed (2-Spd)
- Motor Voltage: 230v
- Drain Plug Location: 6,9 o`clock
- Pump to Motor Foot Types: 10
- Suction Auxiliary Port: 3/8" barb (b) 1ea
- Suction Style: Center
- Suction Connection (Physical Dimension): 3-1/16" od
- Suction Connection Type: Male Buttress Thread (mbt)
- Suction Pipe Size: 2"
- Discharge Auxiliary Port: 3/8" barb (b) 1ea
- Discharge Style: Side
- Discharge Connection (Physical Dimension): 3-1/16" od
- Discharge Connection Type: Male Buttress Thread (mbt)
- Discharge Pipe Size: 2"
- Horsepower: 3.0hp
- Motor Frame: 56 Frame Thru-Bolt
- Motor Amperage/Wattage: 12.0A/4.4A
- Manufacturer: Power-Right
- Pump Model: PRC505
- Manufacturer Impeller Number: IMP9094X
- Volute Fastening Type: 5 Bolts 5 Nuts
- Volute/Sealplate Number: SLPLPRC504-505
