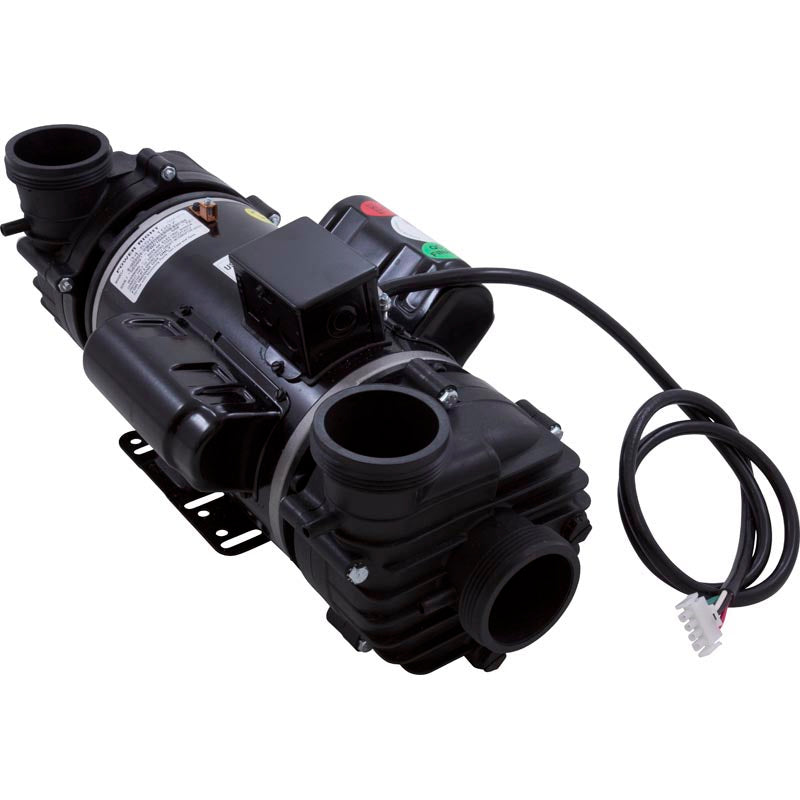

Power PRC1060 2" 4.0HP 230V 2 Speed 56 Frame OEM Pump
Specification:- Complete Pump Type: Portable Spa Pump (Dually)
- Speed: 2 Speed (2-Spd)
- Motor Voltage: 230v
- Drain Plug Location: 3,6 o`clock, 6,9 o`clock
- Pump to Motor Foot Types: 8
- Suction Auxiliary Port: 3/8" barb (b) 1ea
- Suction Style: Center
- Suction Connection (Physical Dimension): 3-1/16" od
- Suction Connection Type: Male Buttress Thread (mbt)
- Suction Pipe Size: 2"
- Discharge Auxiliary Port: 3/8" barb (b) 1ea
- Discharge Style: Side, Side/Left
- Discharge Connection (Physical Dimension): 3-1/16" od
- Discharge Connection Type: Male Buttress Thread (mbt)
- Discharge Pipe Size: 2"
- Horsepower: 4.0hp
- Motor Frame: 56 Frame Thru-Bolt
- Motor Amperage/Wattage: 12.0A/2.6A
- Manufacturer: Power-Right
- Pump Model: PRC1060
- Manufacturer Impeller Number: IMP9093XF, IMP9093XR
- Volute Fastening Type: 5 Bolts 5 Nuts
- Volute/Sealplate Number: SealPlateLgPRF, SealPlateLgPRR
