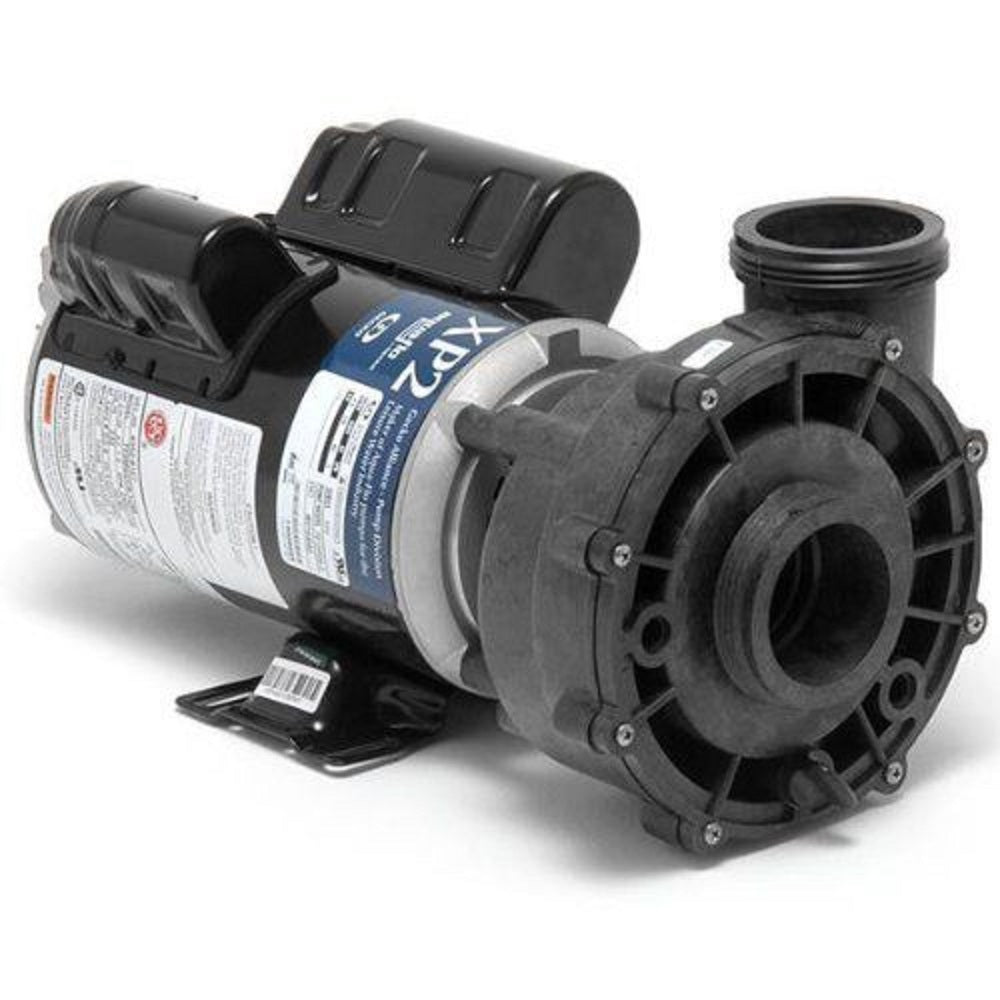

Gecko Alliance 61205002040 Flo-Master XP2 48 Frame 2.0ohp/3.0thp 230V 2 Speed Pump
Aqua-Flo by Gecko original offering in this high performance spa line, the "XP2", offers high performance while utilizing the same space requirements as most other Applications.
Flo-Master XP2 pumps easily outperform every other 48 frame pump on the market while utilizing the same space requirements. Having a shut-off head of more than traditional 48 frame spa pumps, but less than 56 frame pool pumps, these unique pumps have been designed for today's large, heavily jetted spas requiring increased flow.
Features:- Flow rates in excess of 140 GPM for the 1.5 hp, 175 GPM for the 2.0 hp, 220 GPM for the 2.5 hp and greater than 240 GPM for the 3.0 hp.
- True, continuous rated horsepower of 1.5, 2.0, 2.5 and 3.0.
- 2" inlets and outlets.
- Standard with 48 frame motors for maximum cost efficiency. Also available in 56 frame motors for cooler & more efficient running.
- High volumetric volute design provides whisper quiet.
- Speed: 2 Speed (2-Spd)
- Motor: Voltage 230v
- Drain Plug Location: 4,6,9 o`clock
- Pump to Motor Foot Types: 9
- Suction Style: Center
- Suction Connection (Physical Dimension): 3-1/16"od
- Suction Connection Type: Male Buttress Thread (mbt)
- Suction Pipe Size: 2"
- Discharge Style: Side
- Discharge Connection (Physical Dimension): 3-1/16"od
- Discharge Connection: Type Male Buttress Thread (mbt)
- Discharge Pipe Size: 2"
- Horsepower: 2.0hp
- Motor Frame: 48 Frame Thru-Bolt
- Motor Amperage/Wattage: 8.5A/2.8A
- Manufacturer: AquaFlo/Gecko
- Pump Model: Flo-Master XP2
- Manufacturer Impeller Number: 91694200
- Volute Fastening Type: 8 Screws
- Volute/Sealplate Number: 92770705
