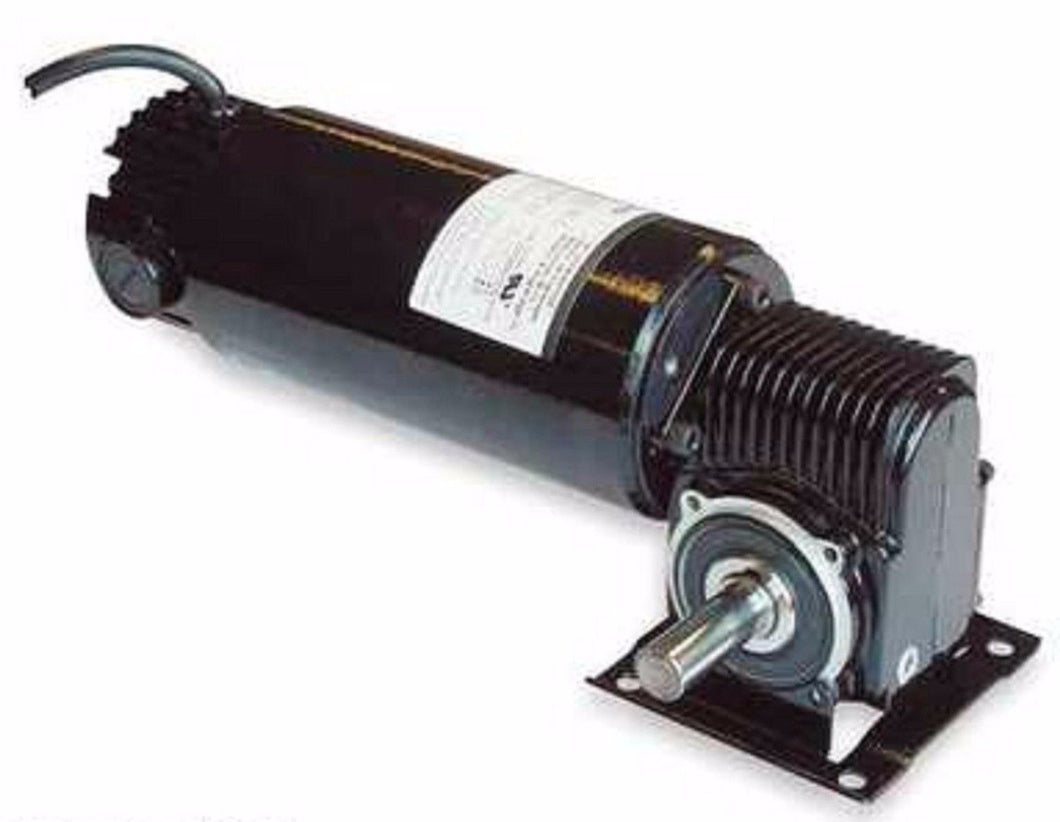

DAYTON Gearmotor 3XA86 60rpm, 90vdc
Right Angle Gearmotor, 90 VDC, 1/4 Hp, Ratio 30:1, 60 Rpm 120 In-Lbs, 2, 33 Amps, Reversible, Overhung Load 175 Lbs, Totally Enclosed Non Ventilated, PMDC Motor, Ball Bearings, 36 In Cordset, Continuous Duty 40 C, Thermal Protection None, Die Cast Gearcase, Permanently Lubricated With Synthetic Oil, All Position Mounting, Output Shaft Is Reversible, And Can Be Removed To Use 3/4 Hollow Shaft, Mounting Bracket Can Be Base Or End Mounted, Machined Pilot Mounting Supplied
- Item DC Gearmotor
- Type Right Angle
- Voltage Rating 90VDC
- Phase DC
- Shaft Orientation Right Angle
- Nameplate RPM 60
- Full Load Torque (In.-Lbs.) 120
- Overhung Load (Lb.) 175
- Input HP 43104
- Gear Ratio 1.25069444444444
- Full Load Amps 2.33
- Enclosure TENV
- Thermal Protection None
- Ambient (C) 40
- Mounting All Position
- Shaft Dimensions (In.) 5/8 x 1 1/2
- Bearings Oversized Ball
- Lubrication Permanent Heavy Fluid Gear Oil
- Brushes Externally Replaceable
- Gear Case Die Cast Aluminum
- Gears Worm, Hardened Steel and Output Gear Bronze Alloy
- Seals Lip Type on Input and Output Shaft
- Replacement Brushes 6YHY6
- RPM Range 51 to 75
- 90VDC Permanent Magnet Right Angle Hollow Shaft Gearmotors
- UL Recognized
- Enclosure: totally enclosed nonventilated
- Mounting: all-position, base
- Rotation: reversible
- Thermal protection: none
- Brushes: externally replaceable
- Ambient: 40C
- Gearcase: die-cast aluminum
- Lubrication: permanent, heavy fluid gear oil
- Gears: worm-hardened steel, output gear bronze alloy
- Bearings: ball on output and motor
- Reversible shaft output
- Seals: lip-type on input and output shafts
