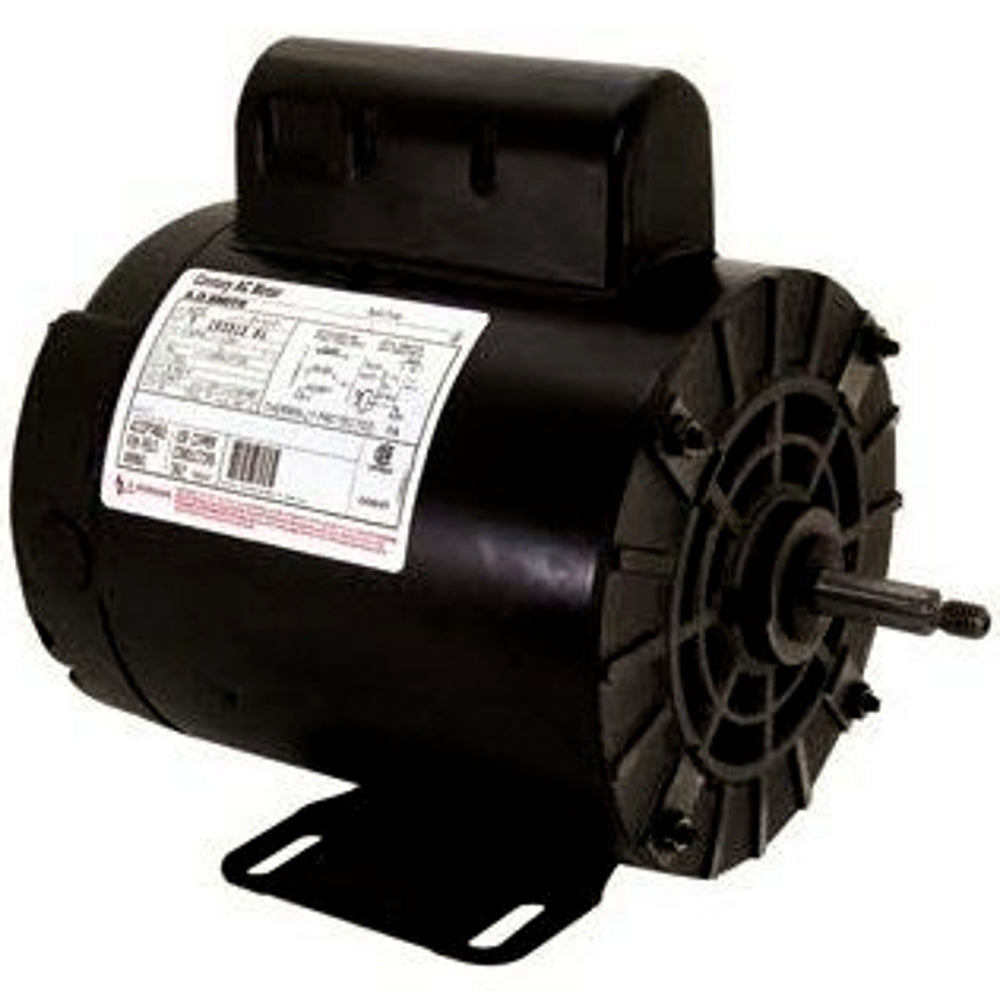

A.O. Smith B236 5HP Motor 230V Dual Speed

A.O. Smith B236 5HP Motor 230V Dual Speed

$356.57
$356.57
Sold out

A.O. Smith pump motors are Pool/Spa/hot tub Energy Efficient and will save you pump motor money on your electric pump motor bill compared to your old pump motor.

Application:Replacement Pool and Spa MotorTechnical Specifications:
  • 5.0~.63 HP-SPL
  • 3450/1725 RPM
  • 230 VOLTS
  • 16.4/4.8
  • 56Y FRAME
  • INSULATION CLASS F
  • TWO SPEED MOTOR
Replacement performance data:
  • Total output (Horsepower (HP) x Service Factor (SF)) of replacement motor must equal or exceed motor being replaced
  • For Sizing of replacement pumps please take the following information from the name plate:
    • 1. Volts2. HP (Horse Power)3. RPM4. FR (Frame)
  • When Replacing Motors, the seal and gaskets should always be replaced.
Specifications:
  • Ball Bearings
  • 50C Ambient
  • 3/8-16 UNC-2A threads includes Slinger
  • Four thru bolts on a 5.812 Bolt Circle
  • Auto Protector
  • Permanent Split Capacitor
  • 6-1/2" Dia., 3-1/2" Shaft Height
